| Type CC-325 |
 |

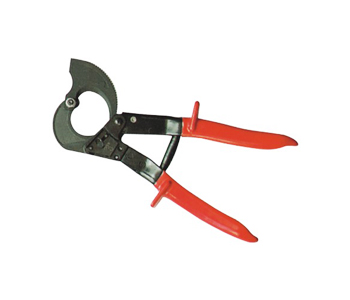

Ratchet Cutter
Fitted with ratcheting unit for energy saving cutting.
Note:Cutting steelrope and hard-drawn copper wire are prohibited.
Forged knife edge for long shelflife.
Fitted with safetylock. |
Specifications
Range of Application Cutting Cu-Al cable below
Cutting capacity 240mm2
Length 260mm
Weight 0.7kg | | |
| Type CC-520 |
 |
Ratchet Cutter
Fitted with ratcheting unit for energy saving cutting.
Note:Cutting steelrope and hard-drawn copper wire are prohibited.
Forged knife edge for long shelflife.
Fitted with safetylock. |
Specifications
Range of Application Cutting Cu-Al cable below
Cutting capacity 400mm2
Length 320mm
Weight 1.0kg | | |
| Type XLG-D-500 |
 |
Ratchet Cutter
Forged knife edge for long shelflife and easy cutting.Compact and light for easy carrying.
Handles extendable.
Easy release and could stop at any position.
Note:Cutting steelrope and hard-drawn copper wire
is strictly prohibited.
|
Specifications
Range of Application Cutting Cu-Al cable below
Cutting capacity ¦µ40 500mm2 Length 240mm£¨Extend 290mm£©
Weight 1.1kg | | |
| Type XLG-D-500B |
 |
Ratchet Cutter
Forged knife edge for long shelflife and easy
cutting.
Compact and light for easy carrying.
Handles extendable.
Easy release and could stop at any position.
Larger cutting scope are available.
|
Specifications
Range of Application Cutting capacity
Cutting Al cable steel reinforced below 600mm2
Steel-cored cable below ¦µ32mm
Steel stranded wire below 100mm2
Bar steel below ¦µ12mm
Length:235mm
Weight 1.1kg | | |
| Type XLJ-65A |
Types XLJ-95A/120A/160A |
 |
 | |
Ratchet Cutter
Forged knife edge for long shelflife and easy cutting.
Compact and light for easy carrying.
Easy release and could stop at any position.
Ifkinife return is necessary during cutting,let the movable handlelock and against the prop tooth block,
then loosen the hand which gripes the handle,turn the swivel knife in counter clockwise.
Note:Cutting steel rope and steel baris strictly prohibited. |
| Specification |
| Model |
Range of Application |
Length |
Weight |
| XLJ-65A |
Cutting Cu-Al cable below ¦µ65 |
355mm(Extend 435mm) |
3.0kg |
| XLJ-95A |
Cutting Cu-Al cable below ¦µ95 |
530mm(Extend 725mm) |
6.3kg |
| XLJ-120A |
Cutting Cu-Al cable below ¦µ120 |
555mm(Extend 745mm) |
7.0kg |
| XLJ-160A |
Cutting Cu-Al cable below ¦µ160 |
760mm(Extend 950mm) |
9.5kg | |
Ratchet Cutter
Forged knife edge for long shelflife and easy cutting.
Compact and light for easy carrying.
Easy release and could stop at any position.
Ifkinife return is necessary during cutting,let the movable handlelock and against the prop tooth block,
then loosen the hand which gripes the handle,turn the swivel knife in counter clockwise.
Knives are resharpening or exchangeable.
The knife of XLJ-G-40W is made of alloy steel,good performance of wear resistance,long useful life.
Note:Cutting steel rope and steel baris strictly prohibited. |
 | |
| Model |
Range of Application |
Length |
Weight |
| XLJ-G-40 |
1 Cutting steel stranded wire below 120mm2,Alcable steel reinforced blow 800mm2
Cutting steel-cored cable below ¦µ36mm,Low carbon steel bar below ¦µ14mm |
440mm(Extend 630mm) |
3.6kg |
| XLJ-G-40A |
Cutting steelwire rope below ¦µ20mm2,cutting Cu-Al cable below ¦µ36mm |
440mm(Extend 630mm) |
3.6kg |
| XLJ-G-40W |
Cutting steel stranded wire below 120mm2,Alcable steel reinforced blow 800mm2
Cutting steel-cored cable below ¦µ36mm,Low carbon steel bar below ¦µ14mm |
440mm(Extend 630mm) |
3.6kg |
| XLJ-G-60 |
Cutting steel stranded wire below 150mm2,Alcable steel reinforced blow 1200mm2
Cutting steel-cored cable below ¦µ52mm,Low carbon steel bar below ¦µ16mm
|
525mm(Extend 715mm) |
7.0kg |
| XLJ-G-60A |
Cutting steelwire rope below ¦µ26mm2,cutting Cu-Al cable below ¦µ52mm |
525mm(Extend 715mm) |
7.0kg | |
