 Super pressure pedal style hydraulic pump specifications

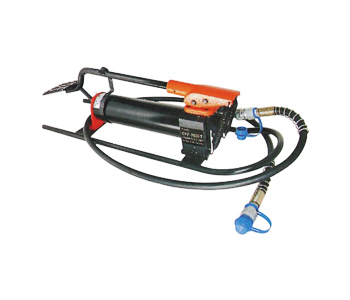

Type CFP-700FT

Super Pressure Pedal Style Hydraulic PumpSpecifications
Function:
Assembled outside with integral removeable pressure regulation
valve.
High and low pressure two stage style oil feeding design.
Piston advance quickly.
Assembled with safety valve so that it could automatically pressure release when reaching limit pressure.
Pedal style pressure release unit.It¡¯s unnecessary to switch to
pressure button during operation.So the operator
could grasp the tool or workpiece with two hands.
The bottom of the hydraulic pump has wide fixing frame to increase stability of operation.

 Throughput Volume of oil
12.26cc per time at low pressure;
2.26cc per time at high pressrue
Oil depositvolume 1200cc
Size 710(L)¡Á192(W)¡Á190(H)mm
Weight 12.7kg
(exclude oil pipe)
Type CFP-800
Super Pressure Pedal Style Hydraulic PumpSpecifications
1.Pump is designed in two stage of high and low speed for quick oil output.Even lack of electric power,it could still
be operated conveniently.It is the same with electric pump in working
pressure and function.
2.Pedal operation.The operator could work while hands griping tool or object.
3.Pressure could be stopped in middle.Inner designed high pressure safety unit protect hydraulic vale.
4.Wide hydraulic pump base for fixing frame could improve stability of
operation at work.
5.Oil pipe fitted with quick coupling could be ordered in any length.It could be fitted with pressure meter(to be
ordered)
6.Oil pipe coupling with PT3/8" thread.

Pressure Rating
700/10000kgf/cm2/psi
Pressure Rating(kgf/cm2)
Low:0-20 High:20-700
Oil Delivery(cc/stroke)
Low:9.8 High:1.9
Reservoir Capacity 800CC
Size 520¡Á140¡Á170mm
Weight 10.1kg
Type CFP-800-1
Super Pressure Pedal Style Hydraulic PumpSpecifications
1.Pump is designed in two stage of high and low speed for quick oil output.Even lack of electric power,it could still
be operated conveniently.It is the same with electric pump in working pressure and function.
2.Pedal operation.The operator could work while hands griping tool or object.
3.Pressure could be stopped in middle.Inner designed high pressure
safety unit protect hydraulic vale.
4.Wide hydraulic pump base for fixing frame could improve stability of
operation at work.
5.Oil pipe fitted with quick coupling could be ordered in any length.It
could be fitted with pressure meter(to be
ordered)
6.Oil pipe coupling with PT3/8" thread.
Pressure Rating
700/10000kgf/cm2/psi
Pressure Rating(kgf/cm2)
Low:0-20 High:20-700
Oil Delivery(cc/stroke)
Low:9.8 High:1.9
Reservoir Capacity 610CC
Size 460¡Á150¡Á240mm
Weight 9.6kg
