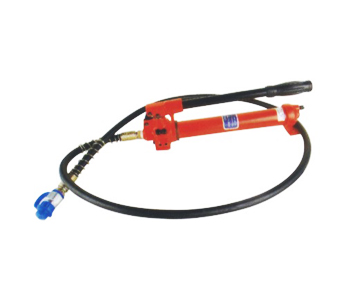

 Hand hydraulic pump
Type CP-390

Hand Hydraulic Pump
1.Pump is designed in two stage of high and low speed for quick oil output.Even lack of electric power,it could still be operated conveniently.It is the same with electric pump in working pressure and function.
2.Manual operation style,oil pipe fitted with quick coupling could be ordered
in any length.It could be fitted with Pressure meter(to be ordered).
3.Pressure could be stopped in middle.Inner design over pressure safety
unit protect hydraulic valve.
4.Oil pipe coupling with PT3/8" thread.

Specifications
Pressure Rating
700/10000kgf/cm2/psi
Pressure Rating(kgf/cm2)
Low:0-20 High:20-700
Oil Delivery(cc/stroke)
Low:9.8 High:1.9
Reservoir Capacity 400CC
Size 430¡Á105¡Á160mm
Weight 4.6kg
Type CP-700
Hand Hydraulic Pump
1.Pump is designed in two stage of high and low speed for quick oil output.Even lack of electric power,it could still be operated conveniently.It is the same with electric pump in working pressure and function.
2.Manual operation style,oil pipe fitted with quick coupling could be ordered
in any length.It could be fitted with Pressure meter(to be ordered).
3.Pressure could be stopped in middle.Inner design over pressure safety
unit protect hydraulic valve.
4.Oil pipe coupling with PT3/8" thread.		 Specifications
Pressure Rating
700/10000kgf/cm2/psi
Pressure Rating(kgf/cm2)
Low:0-20 High:20-700
Oil Delivery(cc/stroke)
Low:12.26 High:2.26
Reservoir Capacity 900CC
Size 510¡Á1000¡Á150mm
Weight 9.2kg
Type CP-700-2A
Hand Hydraulic Pump
1.Pump is designed in two stage of high and low speed for quick oil output.Even lack of electric power,it could still be operated conveniently.It is the same with electric pump in working pressure and function.
2.Manual operation style,oil pipe fitted with quick coupling could be ordered
in any length.It could be fitted with Pressure meter(to be ordered).
3.Extra big oil reserve volume,working under big oil cylinder
4.Pressure could be stopped in middle.Inner design over pressure safety
unit protect hydraulic valve.
5.Oil pipe coupling with PT3/8" thread.
 Specifications
Pressure Rating
700/10000kgf/cm2/psi
Pressure Rating(kgf/cm2)
Low:0-20 High:20-700
Oil Delivery(cc/stroke)
Low:12.26 High:2.26
Reservoir Capacity 900CC
Size 630¡Á240¡Á140mm
Weight 12.2kg
