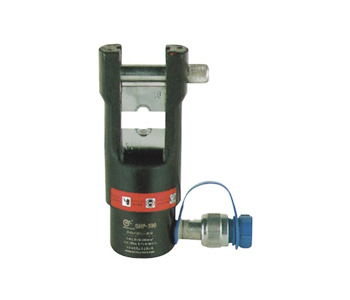

| Type SHP-300 |
 |
Remote Control Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power
calbe and wire.The crimped conductor is tested in high conductivity and
close contact so that it¨s uneasy to break out and turn hot.
2.The head could berotated 180＜ freely for narrow space working.
3.Standard eleven sets of die assembling: 16、25、35、50、70、95、120、150、185、240、300
4.Oil pipe coupling fitted with PT3/8¨ thread.
5.To be worked with pedal pump,manual pump and electric driven hydraulic pump. |
Specifications
Output
12T
Contact Mould
16-300mm2
Ram Stroke
18mm
Size
215～130～70mm
Weight
2.3kg | | |
| Type CO-300H |
 |
Remote Control Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power
calbe and wire.The crimped conductor is tested in high conductivity and
close contact so that it¨s uneasy to break out and turn hot.
2.The head could berotated 180＜ freely for narrow space working.
3.Standard eleven sets of die assembling: 16、25、35、50、70、95、120、150、185、240、300
4.Oil pipe coupling fitted with PT3/8¨ thread.
5.To be worked with pedal pump,manual pump and electric driven hydraulic pump. |
Specifications
Output
12T
Contact Mould
16-300mm2
Ram Stroke
28mm
Size
265～170～50mm
Weight
3.1kg | | |
| Type CO-400H |
 |
Remote Control Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power
calbe and wire.The crimped conductor is tested in high conductivity and
close contact so that it¨s uneasy to break out and turn hot.
2.The head could berotated 180＜ freely for narrow space working.
3.Standard eleven sets of die assembling: 50、70、95、120、150、185、240、300、400
4.Oil pipe coupling fitted with PT3/8¨ thread.
5.To be worked with pedal pump,manual pump and electric driven hydraulic pump. |
Specifications
Output
17T
Contact Mould
50-400mm2
Ram Stroke
22mm
Size
265～100～90mm
Weight
5.0kg | | |
| Type CO-630A |
 |
|
Remote Control Hydraulic Crimping Tools
1.It is specially designed for inside and outside power transmission and distribution project,various
kinds of connecting terminals,overhead and underground cabling.
2.Crimping high voltage cable sleeve,wire prips,un-insulated terminals,hexagon terminals.Crimped part
tight and uneasy to break outin good conductivity.
3.Standard seven sets of dieassembling:150、185、240、300、400、500、630
4.Dies could be ordered and available in any sizes.
5.The oil pipe coupler fitted with PT3/8" thread.
6.To be worked with pedal pump,manual pump and electric driven hydraulic pump.
|
Specifications
Output 35T
Contact Mould 150-30mm2
Ram Stroke 25mm
Size 360～160～110mm
Weight 16.5kg | | |
| Type CO-1000 |
 |
Remote Control Hydraulic Crimping Tools
1.It is specially designed for inside and outside power transmission and distribution project,various
kinds of connecting terminals,overhead and underground cabling.
2.Crimping high voltage cable sleeve,wire prips,un-insulated terminals,hexagon terminals.Crimped part
tight and uneasy to break outin good conductivity.
3.Standard five sets of dieassembling:400、500、630、800、1000
4.Dies could be ordered and available in any sizes.
5.The oil pipe coupler fitted with PT3/8" thread.
6.To be worked with pedal pump,manual pump and electric driven hydraulic pump.
|
Specifications
Output 55T
Contact Mould 400-1000mm2
Ram Stroke 28mm
Size 390～180～150mm
Weight 40.0kg | | | |
