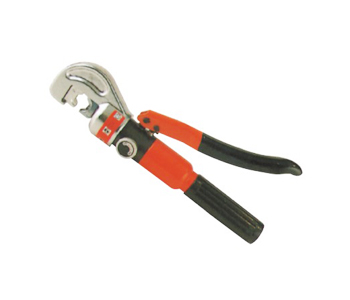

| Types HP-70/70C |
 |
Hydraulic Crimping Tools
1、The compression pliers are designed for hydraulic crimping on
power calbeand wire the cirmped conductor is tested in high conductivity
and close contact sp that it¨s uneasy to breaker out and turn hot
2、Open cut design for convenient operation
3、The head could be rotated 180 freely for narrow space working
4、Fitting with safety valve when pressure eaches to limited max value pressure release automatically to prevent over pressure(HP-70C)
5、Standard seven sets of die assembling :4、6、10、16、25、35、50、70
6、Packing case is made f robust integral plastic box |
Specifications
Output 5T
Cotnact mould 4-70mm2
Ram Stroke 12mm
Size 305～100～55mm
Weight 1.6kg | | |
| Type HP-120C |
 |
Hydraulic Crimping Tools
1、The compression pliers are designed for hydraulic crimping on power calbeand
wire the cirmped conductor is tested in high conductivity and close contact sp that
it¨s uneasy to breaker out and turn hot
2、Open cut design for convenient operation
3、Dies are quickly put on tube by double speed unit then compression force lift and automati cally change to shorten.
4、The head could be rotated 180 freely for narrow space working
5、Fitting with safety valve when pressure eaches to limited max value pressure release automatically to prevent over pressure
6、Standard eight sets of die assembling :10、16、25、35、50、70、95、120
7、Packing case is made from robust integral plastic box |
Specifications
Output 5T
Cotnact Mould 10-120mm2
Ram Stroke 16mm
Size 415～125～65mm
Weight 2.8kg | | |
| Types HP-240C/300C |
 |
Hydraulic Crimping Tools
1、The compression pliers are designed for hydraulic crimping on power calbeand wire the cirmped conductor is tested in high conductivity and close contact sp that it¨s uneasy to breaker out and turn hot
2、Open cut design for convenient operation
3、Dies are quickly put on tube by double speed unit then compression force lift and automati cally change to shorten.
4、The head could be rotated 180 freely for narrow space working
5、Fitting with safety valve when pressure eaches to limited max value pressure release automatically to prevent over pressure
6、Standard seven sets of die assembling :
HP-240C・10 sets of dies・:16、25、35、50、70、95、120、150、185、240
HP-300C・11 sets of dies・:16、25、35、50、70、95、120、150、185、240、300
7、Packing case is made from robust integral plastic box |
Specifications
Model
HP-240C
Output 12T
Cotnact Mould 16-240mm2
Ram Stroke 25mm
Size 505～125～65mm
Weight 4.8kg
Model
HP-300C
Output 8T
Cotnact Mould 10-120mm2
Ram Stroke 16mm
Size 505～125～80mm
Weight 4.2kg
| | |
| Types YQ-120 HP-120/120B |
 |
Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power calbeand wire. The cirmped conductor is tested in high conductivity and close contact sp that it¨s uneasy to breaker out and turn hot.
2.Dies are quickly put on tube by double speed unit.Then compression force lift and automati cally change to low speed.The operation finishes with energy saving and time shorten.
3.Fitted with safety valve.When pressure reaches to liited max.Value,pressure release automatically to prevent over pressure.
4.Standard eight sets of die assembling:10、16、25、35、50、70、95、120
5.Packing case is made from robust integral plastic box. | |
| Specifications |
| Model |
Output(T) |
Contact Mould(mm2) |
Ram Stroke(mm) |
Size(mm) |
Weight(kg) |
| YQ-120 |
8 |
10-120 |
14 |
415～126～65 |
3.0 |
| HP-120(Double speed) |
8 |
10-120 |
14 |
415～126～65 |
3.0 |
| HP-120B(Double speed, the safety device) |
8 |
10-120 |
14 |
415～126～65 |
3.1 | |
| Types YQ-240/300 HP-240/300/300B |
 |
Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power calbe and wire.The crimped conductor is tested in high conductivity and close contact so that it¨s uneasy to break out and turn hot.
2.Dies are quickly put on tube by double speed unit.Then compression force lift and automatically change to low speed.The operation finishes with energy saving and time shorten.
3.Fitted with safety valve.When pressure reaches to limited max.Value,pressure release automatically to prevent over pressure.
4. Standard eleven sets of die assembling:16、25、35、50、70、95、120、150、185、240、(300)
5.Packing case is made from robust integral plastic box. | |
| Specifications |
| Model |
Output(T) |
Contact Mould(mm2) |
Ram Stroke(mm) |
Size(mm) |
Weight(kg) |
| YQ-240 |
12 |
10-240 |
18 |
490～130～70 |
3.8 |
| YQ-300 |
12 |
16-300 |
18 |
490～130～70 |
3.9 |
| HP-240(Double speed) |
12 |
16-240 |
18 |
490～130～70 |
3.8 |
| HP-300(Double speed) |
12 |
16-300 |
18 |
490～130～70 |
3.9 |
| HP-300B(Double speed, the safety device) |
12 |
16-300 |
18 |
490～130～70 |
4.0 | |
| Types CYO-410 |
 |
Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power
calbe and wire.The crimped conductor is tested in high conductivity and
close contact so that it¨s uneasy to break out and turn hot.
2.Open cut design for convenient operation.
3.Dies are quickly put on tube by double speed unit.Then compression force
lift and automatically change to low speed.The operation finishes with energy saving and time shorten.
4.The head could be rotated 180＜ freely for narrow space working.
5.Fitted with safety valve.When pressure reaches to limited max.Value,
pressure release automatically to prevent over pressure.
6.Standard nine sets of die assembling:35、50、70、95、120、150、185、
7.Fiberglass insulated handles to prevent accidental electric Hitting.
8.Packing case is made from robust integral plastic box. |
Specifications
Output
12T
Contact Mould
35-300mm2
Ram Stroke
30mm
Size
620～160～70mm
Weight
6.5kg | | |
| Type CYO-430 |
 |
Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power
calbe and wire.The crimped conductor is tested in high conductivity and
close contact so that it¨s easy to break out and turn hot.
2.Open out design for convenient operation.
3.Dies are quickly put on tube by double speed unit.Then compression
force lift and automatically change to low speed.The operation finishes with energy saving and time shorten.
4.The head could be rotated 180＜ freely for narrow space working.
5.Fitted with safety valve.When pressure reaches to limited max.Value,
pressure release automatically to prevent over pressure.
6.CYO-430 Standard nine sets of die assmbling:50、70、95、120、150、185、240、300、400
7.Fiberglass insulated handles to prevent accidental electric Hitting.
8.Packing case is made from robust integral plastic box.
|
Specifications
Output
12T
Contact Mould
35-300mm2
Ram Stroke
30mm
Size
620～160～70mm
Weight
6.5kg | | |
| Type CYO-510B |
 |
Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power
calbe and wire.The crimped conductor is tested in high conductivity and
close contact so that it¨s easy to break out and turn hot.
2.Open out design for convenient operation.
3.Dies are quickly put on tube by double speed unit.Then compression
force lift and automatically change to low speed.The operation finishes
with energy saving and time shorten.
4.The head could be rotated 180＜ freely for narrow space working.
5.Fitted with safety valve.When pressure reaches to limited max.Value,
pressure release automatically to prevent over pressure.
6.CYO-510B Standard nine sets of die assmbling:50、70、95、120、150、185、240、300、400
7.Fiberglass insulated handles to prevent accidental electric Hitting.
8.Packing case is made from robust integral plastic box. |
Specifications
Output
13T
Contact Mould
50-400mm2
Ram Stroke
38mm
Size
650～150～70mm
Weight
7.2kg | | |
| Type KQY-300 |
 |
Hydraulic Crimping Tools
1.The compression pliers are designed for hydraulic crimping on power
calbe and wire.The crimped conductor is tested in high conductivity and
close contact so that it¨s easy to break out and turn hot.
2.Open out design for convenient operation.
3.Dies are quickly put on tube by double speed unit.Then compression
force lift and automatically change to low speed.The operation finishes with energy saving and time shorten.
4.Fitted with safety valve.When pressure reaches to limited max.Value,pressure release automatically to prevent over pressure.
5.Standard eleven sets of die assembling: 16、25、35、50、70、95、120、150、185、240、300
6.Packing case is made from robustintegral plastic box. |
Specifications
Output
12T
Contact Mould
16-240mm2
Ram Stroke
25mm
Size
520～145～80mm
Weight
7.0kg | | |
