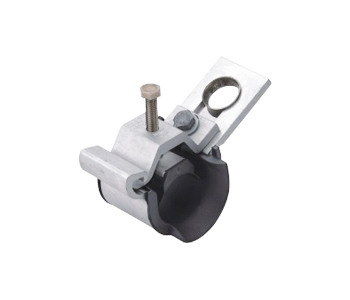

 Suspension clamp
Suspension clamp
Used for the installation and suspension of LV ABC cables to poles with standard hook attachment.For staight lines and angles up to 30¡ã4¡Á(25-120mm2) and 60¡ã4¡Á(25-50).Thanks to the integratd construction,no extra parts are needed for the installation.The body is made of corrosion proof aluminium and the inserts of weather resistant plastic.

Light duty clamp for the installation and suspension of 4-core LV ABC cables to poles with standard hook attachment.For straight lines and angles up to 30¡ã.Thanks to the integrated construction,no extra parts are need for the installation.The body is made of corrosion proof aluminium and the inserts of weather resitant plastic.

For the instrallation and suspension of 4-core LV ABC cables to poles with standard hook attcahment.For straight lines and angles up to 90¡ã.No extra parts are needed for the insallation.
Modle Conductor Cross -section(mm2)
SM130 2-4¡Á(25-50)¡Ü60¡ã/
2-4¡Á(25-120)¡Ü30¡ã
SM140 2-4¡Á(25-120)¡Ü30¡ã
SM136 2-4¡Á(25-120)¡Ü90¡ã
NEJ Wedge strain clamps for insulation cable
Application
This series are mainly used in 20kV or less than 10kV distribution system to fix and tighten the aluminum insulating wires at the corner or the end of the insulators on the stilt.
Technical Data
Modle Applicable conductor(mm2) Inner clamping range Grip strength(kN) Failure load(kN)
1kV 10kV 20kV
NEJ-1 35 - - ¦µ10~¦µ11 3.4 12.4
50 16 - ¦µ12~¦µ13 4.6
70 25 - ¦µ14~¦µ15 6.7
95 35 - ¦µ15~¦µ17 8.9
NEJ-2 120 50~70 25~35 ¦µ16~¦µ18.5 11.3 20.8
150 95 50 ¦µ19.00~¦µ21 13.7
NEJ-3 185 120 70 ¦µ21.0~¦µ23 17.3 32.0
NEJ-4 240 150 95 ¦µ23~¦µ25.6 22.5 41.7
  185 120 ¦µ24~¦µ26 22.5
  240 150 ¦µ26~¦µ27.5 22.5
  - 185~240 ¦µ27.5~¦µ31.5 22.5
NEJ-5   300   ¦µ27.5~¦µ31.5 28.2 52.1
JNS Four(two)-core bunched cable strain clamp series
Application
JNS series four-core bunched cable strain clamp series are fully used for fixing or tightening 1kV and less than 1kV overhead four(two)-cores bunched cable at ends of circuit.
Function and Features
1.Itadopts four(two)-core paralled groove paralled gap structure.Put the four insulation cables into clamp according to circuit design without peeling off the coat,then tighten the bolt to bunch it.
2.For inner block and filling pole with high strength,anti-climate resistance insulation plastic,it can be used for a long term;
3.Adoptting wedge type self-tighten structure,after tightening the ringe,it will be fixing,and get a quite big grasp strength.
Technical Data
Modle Applicable Voltage(kV) Applicable conductor(mm2) Dimensions(mm) Note
A B C
JNS-1A-1 1kV 4¡Á10-4¡Á16mm2 200 78 45 Four cores
JNS-1A-2 4¡Á16-4¡Á50mm2 260 100 62
JNS-2A 4¡Á50-4¡Á120mm2 330 105 72
JNS-1C 1kV 2¡Á10-2¡Á16mm2 200 78 30 Two cores
JNS-2C 2¡Á16-2¡Á50mm2 260 100 40

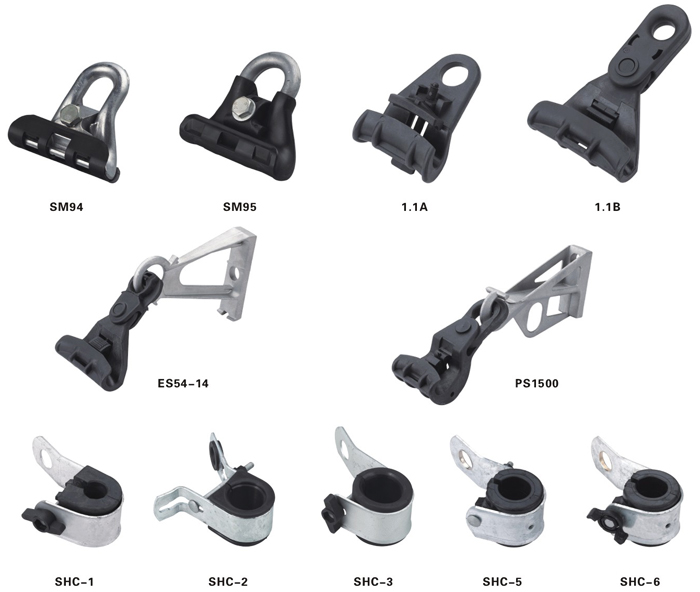

Suspension clamp
Product property:On poles,in alignment or angle,different level.also provide for hanging a public light bundle.
Modle Conductor Range
SM94 16-95
SM95 16-95
1.1A 16-95
1.1B 16-95
ES54-14 16-95
PS1500 16-95
SHC-1 4¡Á(16-35)
SHC-2 4¡Á(50-120)
SHC-3 4¡Á(50-70)
SHC-4 4¡Á(50-70)
SHC-5 4¡Á(70-95)
SHC-6 4¡Á(70-95)
