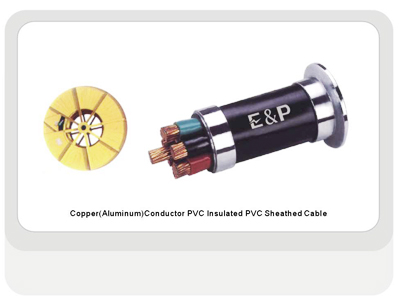

- VV
- Non-armoured Power Cable |
¡òStandard:IEC 60502,BS6346,GB/T12706.1-2002
¡òApplication:For laying indoors,in tunner or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.
¡òSpecification:Circular copper conductor for single core and shaped conductors for multi-core, PVC insulated, PVC sheathed cable.
¡òVoltage:0.6/1kV |
| IEC 60502 |
| No.of Cores |
0.6/1kV |
Normal
area
mm2 |
| 1 |
1.5~800 |
| 2 |
1.5~400 |
| 3 |
1.5~400 |
| 4 |
1.5~400 |
| 5 |
1.5~300 |
|
|
| IEC 60502 |
Normal
area
mm2 |
1kV |
Normal
area
mm2 |
1kV |
| 0.6/1kV |
0.6/1kV |
Thickness of
insulation mm |
Thickness of
insulation mm |
| 1.5,2.5 |
0.8 |
95,120 |
1.6 |
| 4,6 |
1.0 |
150 |
1.8 |
| 10 |
1.0 |
185 |
2.0 |
| 16 |
1.0 |
240 |
2.2 |
| 25 |
1.2 |
300 |
2.4 |
| 35 |
1.2 |
400 |
2.6 |
| 50,70 |
1.4 |
500~800 |
2.8 |
|
|
 |
- VV32
- Armoured power cable |
¡òStandard:IEC 60502,BS6346,GB 12706.1-2002
¡òSpecification:Circular copper conductor for single core and shaped conductors for multi-core, PVC insulated, PVC bedding,armoured,PVC sheathed cable.
¡òVoltage:0.6/1kV
¡òArmour type:SWA(steel wire armoured)
¡¡¡¡¡¡¡¡¡¡¡¡¡¡
STA(steel tape armoured)
¡¡¡¡¡¡¡¡¡¡¡¡¡¡
AWA(aluminium wire armoured) |
| IEC 60502 |
| Type |
No.Cores |
0.6/1kV |
Normal
area
mm2 |
| VV32 |
1 |
50~800 |
| 2 |
1.5~400 |
| 3 |
1.5~400 |
| 4 |
1.5~400 |
| 4+1 |
4~185 |
|
|
| BS 6346 |
Normal
area
mm2 |
4 cores |
Normal
area
mm2 |
4 cores |
| 0.6/1kV |
0.6/1kV |
Thickness of
insulation mm |
Thickness of
insulation mm |
| 1.5,2.5 |
0.8 |
95,120 |
1.6 |
| 4,6 |
1.0 |
150 |
1.8 |
| 10 |
1.0 |
185 |
2.0 |
| 16 |
1.0 |
240 |
2.2 |
| 25 |
1.2 |
300 |
2.4 |
| 35 |
1.2 |
400 |
2.6 |
| 50,70 |
1.4 |
500~800 |
2.8 |
|
|
 |
- YJV/YJV32
- copper(aluminum)conductor xlpe insulated pvc sheathed power cable rated voltage up to 35kV
|
¡òStandard:IEC 60502
¡òApplication:For laying indoors,in tunnel or cable trench,Single-core cable in magnetic duct is not permissible.
¡òSpecification:Circular Copper(or Aluminium) conductor for single core and shaped conductors for multi-core,XLPE insulated,PVC bedding,armored(or unarmored)PVC sheathed cable.
¡òVoltage:0.6/1kV,6/6kV,6/10kV,8.7/15kV,12/20kV,18/30kV,19/33kV,26/35kV
¡òCode name:NYRY,NYY-O |
| IEC 60502 |
| Type |
KV |
| No.of cores |
0.6/1kV |
6/6kV,6/10kV |
8.7/15kV,12/20kV,18/30kV |
19/33kV,26/35kV |
| mm2 |
| COPPER/XLPE/PVC |
1 |
1.5-800 |
25-800 |
35-1200 |
50-1200 |
| ALUMINIUM/XLPE/PVC |
2.5-1000 |
25-1000 |
35-1200 |
50-1200 |
| COPPER/XLPE/SWA(STA,AWA)PVC |
10-1000 |
25-1000 |
35-1200 |
50-1200 |
| COPPER/XLPE/PVC |
3 |
1.5-400 |
25-400 |
35-400 |
50-400 |
| ALUMINIUM/XLPE/PVC |
2.5-400 |
25-400 |
35-400 |
50-400 |
| COPPER/XLPE/SWA/PVC |
4-400 |
25-400 |
35-400 |
50-400 |
|
 |
- Telephone cable
- solid or stranded in round or flat type |
¡òStandard:According to customer¡¯s requirements
¡òApplication:For voice signal transmission.
¡òSpecification:Copper or tinned copper,PE or PVC insulated and PVC sheathed. |
| No.of pairs |
No.of wire/dia.mm |
Approx.Overall Diameter mm |
Approx.Weigh kg/km |
Package |
| 1 |
1/0.40-0.50 |
5.10-5.20 |
39 |
According to the Custsomer¡¯s requirements |
| 2 |
1/0.40-0.50 |
5.60-5.70 |
46 |
| 3 |
1/0.40-0.50 |
5.70-5.80 |
57 |
| 4 |
1/0.40-0.50 |
5.90-6.00 |
64 |
| 6 |
1/0.40-0.50 |
7.70-7.80 |
102 |
| 8 |
1/0.40-0.50 |
8.00-8.10 |
116 |
| 10 |
1/0.40-0.50 |
8.70-8.80 |
132 |
| 12 |
1/0.40-0.50 |
8.90-9.00 |
170 |
| 16 |
1/0.40-0.50 |
10.00-10.10 |
184 |
| 20 |
1/0.40-0.50 |
11.00-11.10 |
220 |
| 25 |
1/0.40-0.50 |
12.00-12.10 |
285 |
| 30 |
1/0.40-0.50 |
13.10-13.20 |
324 |
|
|
