 LV UD Service Entrance Conductors
- Single Conductor 600V Secondary Type
- UD Cable-Aluminum Conductor
¡ñApplication
¡¡¡¡Directly buried or installed in ducts for 600V Secondary distribution
¡ñConstruction
¡¡¡¡Concentrically stranded or compressed 1350-H19 aluminum conductor,Cross-linked Polyethylene(XLPE)insulation
¡ñSpecification
¡¡¡¡ ¡òASTM B 230,aluminum wire,1350-H19 for electrical purpose
¡¡¡¡ ¡òASTM B 231,aluminum conductor,concentric laying stranded
¡¡¡¡ ¡òMeet or exceed all applicable requirement of ICEA S-105-692,UL 854 for Type USE-2
¡ñOption
¡¡¡¡ ¡òCable in duct
¡¡¡¡ ¡òAbrasion resistant
Single conductor 600Volt secondary type UD Cable Aluminum Conductor
Code Name Size AWG or MCM Stranded Insulation thickness(Mils) Overall Diameter(Inches) Mass of Cable(Lbs/KFt) Ampacity*(A)
Direct Buried In Duct
Princeton 6 7 wire 60 0.298 45 90 65
Mercer 4 7 wire 60 0.345 64 120 85
Clemson 2 7 wire 60 0.403 93 155 115
Kenyon 1 19 wire 80 0.482 122 175 130
Harvard 1/0 19 wire 80 0.522 148 200 150
Yale 2/0 19 wire 80 0.566 179 225 170
Tufts 3/0 19 wire 80 0.616 217 250 195
Beloit 4/0 19 wire 80 0.672 265 290 225
Hofstra 250 37 wire 95 0.748 317 320 250
Gonzaga 300 37 wire 95 0.801 371 355 280
Rutgers 350 37 wire 95 0.851 423 385 305
Emory 500 37 wire 94 0.979 579 465 370
Duke 600 61 wire 110 1.086 701 510 410
Furman 700 61 wire 110 1.155 804 550 440
Sewanee 750 61 wire 110 1.188 855 580 470
Fordham 1000 61 wire 110 1.377 1109 670 545
*Ampacity rating base on 95¡æ conductor temperature; 20¡æ ambient temperature; RHO 90 and 100% load factor
- Duplex Conductor 600V Secondary Type
- UD Cable-Aluminum Conductor
¡ñApplication
¡¡¡¡Directly buried or installed in ducts for 600V Secondary distribution
¡ñConstruction
¡¡¡¡Concentrically stranded or compressed 1350-H19 aluminum conductor,Cross-linked Polyethylene(XLPE)insulation,Insulated conductors surface printed,neutral with triple Yellow striped or solid yellow.Black neutral may be specified if desired
¡ñSpecification
¡¡¡¡¡òASTM B 230,aluminum wire,1350-H19 for electrical purpose
¡¡¡¡¡òASTM B 231,aluminum conductor,concentric laying stranded
¡¡¡¡¡òMeet or exceed all applicable requirement of ICEA S-105-692,UL 854 for Type USE-2
¡ñOption
¡¡¡¡¡òCable in duct
¡¡¡¡¡òAbrasion resistant
Duplex Conductor 600V olt Secondary Type UD Cable-Aluminum Conductor
Code Name Phase Conductor Bare Neutral Messenger Single Phase Diameter(Inch) Overall diameter(Inch) Mass of Cable(Lbs/KFt) Ampacity*(A)
Size AWG Stranded(Nos) Insulation Thickness(Mils) Size AWG Stranded(Nos) Insulation Thickness(Mils)
Direct Buried In Duct
Bard 8 7 wire 60 8 7 wire 60
Claflin 6 7 wire 60 6 7 wire 60
Delgado 4 7 wire 60 4 7 wire 60
Everett 2 7 wire 60 2 7 wire 60
*Ampacity rating base on 75¡æ conductor temperature; 25¡æ ambient temperature; Emissivity 0.91 and coefficient of absorbtion of 0.95

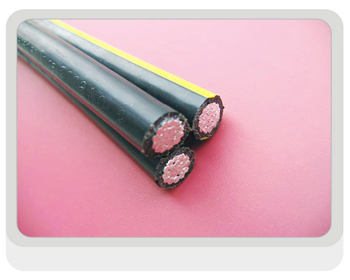

- Triplex Conductor 600V Secondary Type
- UD Cable-Aluminum Conductor
¡ñApplication
¡¡¡¡Directly buried or installed in ducts for 600V Secondary distribution
¡ñConstruction
¡¡¡¡Concentrically stranded or compressed 1350-H19 aluminum conductor,Cross-linked Polyethylene(XLPE)insulation,Insulated conductors surface printed, neutral with triple Yellow striped or solid yellow. Two phase and one neutral conductor twisted together(Right Hand lay)or parallel if so specified. Black neutral may be specified if desired
¡ñSpecification
¡¡¡¡¡òASTM B 230,aluminum wire,1350-H19 for electrical purpose
¡¡¡¡¡òASTM B 231,aluminum conductor,concentric laying stranded
¡¡¡¡¡òMeet or exceed all applicable requirement of ICEA S-105-692,UL 854 for Type USE-2
¡ñOption
¡¡¡¡¡òCable in duct
¡¡¡¡¡òAbrasion resistant
Triplex Conductor 600V olt secondary type UD Cable Aluminum Conductor
Code Name Phase Conductor Bare Neutral Messenger Single Phase Diameter(Inch) Overall diameter(Inch) Mass of Cable(Lbs/KFt) Ampacity*(A)
Size AWG Stranded (Nos) Insulation Thickness(Mils) Size AWG Stranded(Nos) Insulation Thickness(Mils)
Direct Buried In Duct
Erksine 6 7 wire 60 6 7 wire 60 0.299 0.466 143 95 70
Vassar 4 7 wire 60 4 7 wire 60 0.345 0.754 203 125 90
Stephens 2 7 wire 60 4 7 wire 60 0.403 0.842 264 165 120
Ramapo 2 7 wire 60 2 7 wire 60 0.403 0.874 294 165 120
Brenau 1/0 19 wire 80 2 7 wire 60 0.522 1.064 408 215 160
Bergen 1/0 19 wire 80 1/0 19 wire 80 0.522 1.133 465 215 160
Converse 2/0 19 wire 80 1 19 wire 80 0.566 0.174 502 245 180
Hunter 2/0 19 wire 80 2/0 19 wire 80 0.566 1.288 560 245 180
Hollins 3/0 19 wire 80 1/0 19 wire 80 0.616 1.276 606 280 205
Rockland 3/0 19 wire 80 3/0 19 wire 80 0.616 1.336 678 280 205
Sweetbrisr 4/0 19 wire 80 2/0 19 wire 80 0.672 0.389 739 315 240
Monmouth 4/0 19 wire 80 4/0 19 wire 80 0.672 1.457 828 315 240
Pratt 250 37 wire 95 3/0 19 wire 80 0.748 1.538 893 345 265
Wesleyan 350 37 wire 95 4/0 19 wire 80 0.851 1.736 116 415 320
Holyoke 500 37 wire 95 300 37 wire 95 0.979 2.008 1607 495 395
Rider 500 37 wire 95 350 37 wire 95 0.979 2.035 1663 495 395
Fairfield 750 37 wire 110 500 37 wire 95 1.188 2.860 2304 615 525
*Ampacity rating base on 90¡æ conductor temperature; 20¡æ ambient temperature; RHO 90 and 100% load factor

- Quadruplex Conductor 600V Secondary
- Type UD Cable-Aluminum Conductor
¡ñApplication
¡¡¡¡Directly buried or installed in ducts for 600V Secondary distribution
¡ñConstruction
¡¡¡¡Concentrically stranded or compressed 1350-H19 aluminum conductor,Cross-linked Polyethylene(XLPE)insulation,Insulated conductors surface printed, neutral with triple Yellow striped or solid yellow. Three phase and one neutral conductor twisted together(Right Hand lay)or parallel if so specified. Black neutral may be specified if desired
¡ñSpecification
¡¡¡¡¡òASTM B 230,aluminum wire,1350-H19 for electrical purpose
¡¡¡¡¡òASTM B 231,aluminum conductor,concentric laying stranded
¡¡¡¡¡òMeet or exceed all applicable requirement of ICEA S-105-692,UL 854 for Type USE-2
¡ñOption
¡¡¡¡¡òCable in duct
¡¡¡¡¡òAbrasion resistant
Quadruplex Conductor 600Volt secondary type UD Cable Aluminum Conductor
Code Name Phase Conductor Bare Neutral Messenger Single Phase Diameter(Inch) Overall diameter(Inch) Mass of Cable(Lbs/KFt) Ampacity*(A)
Size AWG Stranded (Nos) Insulation Thickness(Mils) Size AWG Stranded(Nos) Insulation Thickness(Mils)
Direct Buried In Duct
Tulsa 4 7 wire 60 4 7 wire 60 0.345 0.833 258 119 85
Dyke 2 7 wire 60 4 7 wire 60 0.403 0.938 346 153 115
Wittenberg 2 7 wire 60 2 7 wire 60 0.403 0.973 375 153 115
Notre Dame 1/0 19 wire 80 2 7 wire 60 0.522 1.188 541 198 150
Purdue 1/0 19 wire 80 1/0 19 wire 80 0.522 1.260 596 198 150
Syracuse 2/0 19 wire 80 1 19 wire 80 0.566 1.316 664 225 170
Lafayette 2/0 19 wire 80 2/0 19 wire 80 0.566 1.367 720 225 170
Swarthmore 3/0 19 wire 80 1/0 19 wire 80 0.616 1.430 805 250 195
Davidson 3/0 19 wire 80 3/0 19 wire 80 0.616 1.487 874 250 195
Wake Forest 4/0 19 wire 80 2/0 19 wire 80 0.672 1.560 979 290 225
Earlham 4/0 19 wire 80 4/0 19 wire 80 0.672 1.623 1066 290 225
Slippery rock 350 37 wire 95 4/0 19 wire 80 0.851 1.945 1544 385 305
Wofford 500 37 wire 95 350 37 wire 95 0.851 2.348 2174 467 420
Westminster 500 61 wire 110 350 37 wire 95 0.979 2.722 2816 615 492
Windham 750 61 wire 110 500 37 wire 95 0.979 2.850 2542 615 492
*Ampacity rating base on 90¡æ conductor temperature; 20¡æ ambient temperature; RHO 90 and 100% load factor
