 Bimetal link

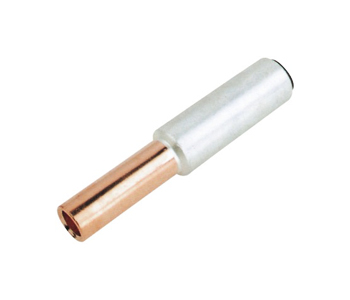

Bimetal link
Material:E-CU A1-99.5%
Surface treatment:Bright
Product property:Due to the coupling effect when aluminium comes in contact with copper corrosion will happen in a short time currently the best solution os to use aluminium-copper bimetal connectors,A bimetal link should be used for joint the friction welding is well done and its aluminium barrel capped is filled with joint compaound to avoid oxidization

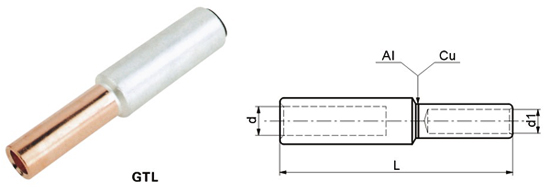

Modle Dimensions(mm)
L d d1
GTL-AL25/CU16 70 6.8 5.5
GTL-AL35/CU16 76 8 5.5
GTL-AL35/CU25 82 8 7
GTL-AL50/CU25 85 9.8 7
GTL-AL50/CU35 90 9.8 8.2
GTL-AL70/CU35 95 11.2 8.2
GTL-AL70/CU50 100 11.2 10
GTL-AL95/CU50 105 13.2 10
GTL-AL95/CU70 110 13.2 11.5
GTL-AL120/CU70 116 14.7 11.5
GTL-AL120/CU95 118 14.7 13.5
GTL-AL150/CU95 120 16.3 13.5
GTL-AL150/CU120 122 16.3 15.5
GTL-AL185/CU120 128 18.3 15.5
GTL-AL185/CU150 130 18.3 17
GTL-AL240/CU150 132 21 17
GTL-AL240/CU185 135 21 19
GTL-AL240/CU240 140 121 21.5
GTL-AL300/CU240 145 23.3 21.5
GTL-AL300/CU300 150 23.3 24.5
