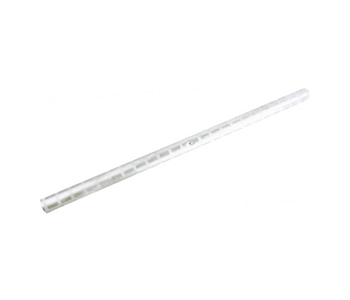

Aluminium full-tension sleeve AFT-R

Material:A1-99.5%
Surface treatment:Bright
Product property:It is full-tension aluminium sleeve link with marking for correct crimping the barrel capped os filled with joint compound to avoid oxidization it is used for ACSR conductors

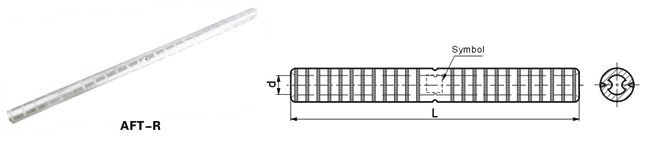

Modle	ACSR conductor stranding	conductor name	dimensions(mm)
Modle	ACSR conductor stranding	conductor name	L	d
AFT36R	6/1/2.50	Almond	355	9.11
AFT36R	3/4/2.50	Rainsin	355	9.11
AFT44R	6/1/2.75	Apricot	355	11.12
	6/1/3.00	Apple	355	11.12
	4/3/3.00	Sultana	355	11.12
AFT50R	6/1/3.75	Banana	470	12.70
AFT50R	4/3/3.75	Walnut	470	12.70
AFT61R	6/4.75 7/1.60	Cherry	505	15.46
AFT80R	30/7/2.50	Grape	580	20.21
AFT94R	30/7/3.00	Lemon	610	24.59
