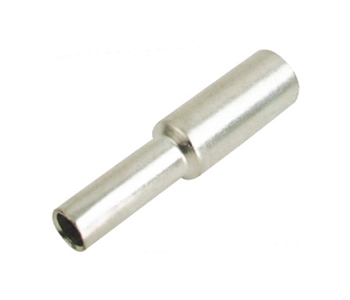

 Reducing sleeve
Reducing sleeve
Material:E-Cu
Surface treatment:Tin-plated mini 5 microns
Product property:It is a barrier type.To be used in the connection between different diameter of copper conductors.
Modle Dimensions(mm)
L d d1
CASR6/4 30 4 3
CASR10/6 30 4.5 4
CASR16/6 40 5.5 4
CASR16/10 40 5.5 4.5
CASR25/6 40 7.5 4
CASR25/10 40 7.5 4.5
CASR25/16 50 7.5 5.5
CASR35/10 40 8.5 4.5
CASR35/16 55 8.5 5.5
CASR35/25 60 8.5 7.5
CASR50/10 45 9.5 4.5
CASR50/16 55 9.5 5.5
CASR50/25 55 9.5 7.5
CASR50/35 60 9.5 8.5
CASR70/16 60 11.5 5.5
CASR70/25 60 11.5 7.5
CASR70/35 65 11.5 8.5
CASR70/50 65 11.5 9.5
CASR95/25 65 13.5 7.5
CASR95/35 65 13.5 8.5
CASR95/50 70 13.5 9.5
CASR95/70 70 13.5 11.5
CASR120/35 70 15.5 8.5
CASR120/50 70 15.5 9.5
CASR120/70 75 15.5 11.5
CASR120/95 75 15.5 13.5
CASR150/50 70 16.5 9.5
CASR150/70 75 16.5 11.5
CASR150/95 80 16.5 13.5
CASR150/120 80 16.5 15.5
CASR185/70 75 18.5 11.5
CASR185/95 80 18.5 13.5
CASR185/120 85 18.5 15.5
CASR185/150 85 18.5 16.5
CASR240/95 85 21.5 13.5
CASR240/120 90 21.5 15.5
CASR240/150 90 21.5 16.5
CASR240/185 95 21.5 18.5
CASR300/120 95 23.5 15.5
CASR300/150 95 23.5 16.5
CASR300/185 100 23.5 18.5
CASR300/240 105 23.5 21.5
CASR400/150 110 26.5 16.5
CASR400/185 110 26.5 18.5
CASR400/240 125 26.5 21.5
CASR400/300 125 26.5 23.5
CASR500/185 115 30 18.5
CASR500/240 120 30 21.5
CASR500/300 125 30 23.5
CASR500/400 140 30 26.5
CASR630/240 120 34 21.5
CASR630/300 125 34 23.5
CASR630/400 140 34 26.5
CASR630/500 140 34 30
CASR800/400 150 39.5 26.5
CASR800/500 150 39.5 30
CASR800/630 150 39.5 34
CASR1000/500 150 44 30
CASR1000/630 150 44 34
CASR1000/800 165 44 39.5
