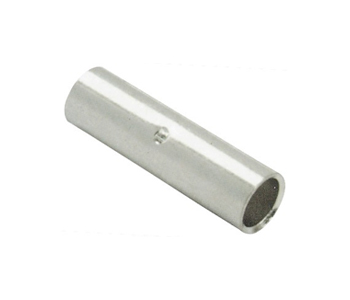

 Cable link GTY-2
Cable link
Material:E-Cu
Surface treatment:Tin-plated
Product property:It is used to connect copper conductor.
Modle Dimensions(mm)
L d
GTY-2-1.5 20 1.9
GTY-2-2.5 20 2.8
GTY-2-4 20 3.2
GTY-2-6 25 3.7
GTY-2-10 30 4.5
GTY-2-16 35 5.7
GTY-2-25 40 7.2
GTY-2-35 45 8.5
GTY-2-50 50 9.8
GTY-2-70 55 11.5
GTY-2-95 60 13.7
GTY-2-120 65 15
GTY-2-150 70 16.7
GTY-2-185 75 19.2
GTY-2-240 80 12
GTY-2-300 85 24
GTY-2-400 90 27
GTY-2-500 100 30
GTY-2-630 110 35
GTY-2-800 150 39
GTY-2-1000 170 44
