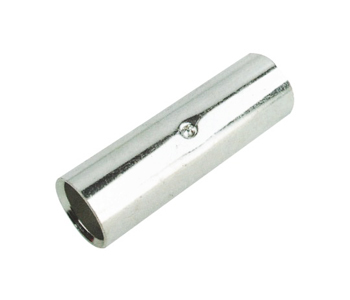

 Cable link GTY-1
Cable link
Material:E-Cu
Surface treatment:Tin-plated
Product property:Tin-plated
Product property:It is used to connect copper conductor joint.

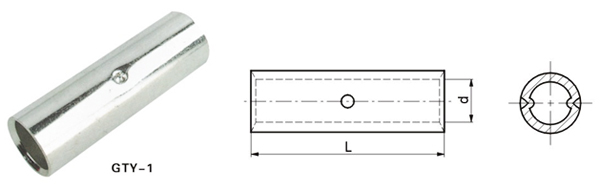

Modle Dimensions(mm)
L d
GTY-1-1.5 20 1.9
GTY-1-2.5 20 2.8
GTY-1-4 20 3.2
GTY-1-6 25 3.7
GTY-1-10 30 4.5
GTY-1-16 35 5.7
GTY-1-25 40 7.2
GTY-1-35 45 8.5
GTY-1-50 50 9.8
GTY-1-70 55 11.5
GTY-1-95 60 13.7
GTY-1-120 65 15
GTY-1-150 70 16.7
GTY-1-185 75 19.2
GTY-1-240 80 21
GTY-1-300 85 24
GTY-1-400 90 27
GTY-1-500 100 30
GTY-1-630 110 35
GTY-1-800 150 39
GTY-1-1000 170 44
