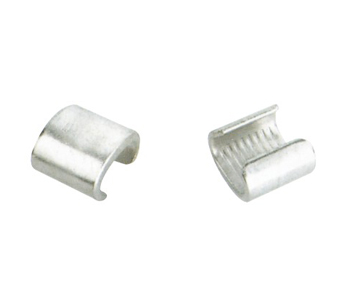

 U-T type connector
U-T Type connector
Material:E-Cu
Surface treatment:Tin plated mini 3 microns
Product Property:Dimpled and serrated to obtain high pull-out value.Chamfered edges designed to protect the wire.
Modle Dimensions(mm) Conductor Cross-section(mm2)
L B H
U-T44 20 8.3 14 27-44
U-T60 22.5 10.8 15 45-60
U-T76 22.5 9.5 17 61-76
U-T98 25 14.5 19 77-98
U-T122 26 14 21 99-122
U-T154 28 17 25 123-154
U-T190 35 17 25 155-190
U-T240 40 20 29 191-240
U-T288 45 22 32 241-288
U-T365 50 27.5 34 289-265
U-T450 60 28 41 266-450
