 Split bolt

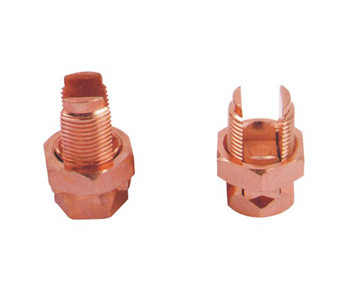

Split bolt
Material:Brass
Surface treatment:Tin plated or copper plated on request
Product Property:It is used to branch or connect a erial hard copper conductor or insulated copper conductor.
Modle Dimensions(mm)
L D B Screw Thread
SB 16-35 38 17 8.5 5/8-18UNF-2A
SB 25-50 42 19 10 3/4-16UNF-2A
SB 50-70 46 21 11 3/4-16UNF-2A
SB 95-120 50 26 14.5 1-12UNF-2A
SB 150-185 60 30 17.2 1 3/16-12UNF-2A
SB 200-240 45 32 19.3 1 1/4-12UNF-2A
SB 10 27 13 5 1/220UNF-2A
SB 16 30 14 6 G1/4
SB 25 32 17 7 5/8-18UNF-2A
SB 35 38 17 8.5 5/8-18UNF-2A
SB 50 42 19 10 3/4-16UNF-2A
SB 70 46 21 11 3/4-16UNF-2A
SB 95 46 26 13.3 1-12UNF-2A
SB 120 50 26 14.5 1-12UNF-2A
SB 150 55 30 16.5 1 3/16-12UNF-2A
SB 185 60 30 17.2 1 3/16-12UNF-2A
SB 240 65 32  19.3 1 1/4-12UNF-2A
