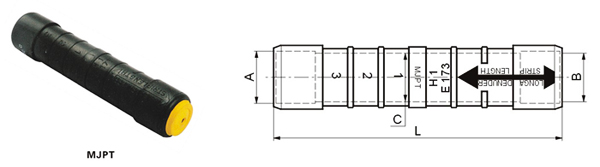

| Pie-insulated sleeve |
 |
| Modle |
Cable Size(mm2) |
Plastic Sleeve Diameter(mm) |
Length(mm) |
| A |
B |
C |
L |
| MJPT 16/16 |
16 |
16 |
20 |
98.5 |
| MJPT 25/25 |
25 |
25 |
20 |
98.5 |
| MJPT 35/35 |
35 |
35 |
20 |
98.5 |
| MJPT 50/50 |
50 |
50 |
20 |
98.5 |
| MJPT 70/70 |
70 |
70 |
20 |
98.5 |
| MJPT 95/95 |
95 |
95 |
20 |
98.5 |
|
Material:Aluminum alloy
Product property:MJPT is designed to connect the insulated cable(include ABC cable)in aerial distribution network.It is accordance with NFC33-021.The sleeve is with some tension.
And its cap can prevent the water into the barrel.It is colored differently to distinguish the cable sizes.
Marked with type,cable size,die size.inner cable length and number of crimping. |

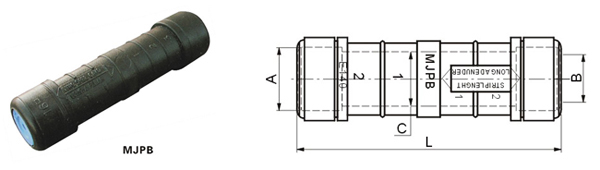

| Pre-insulated sleeve |
 |
| Modle |
Cable Size(mm2) |
Plastic Sleeve Diameter(mm) |
Length(mm) |
| A |
B |
C |
L |
| MJPB 6/16 |
6 |
16 |
16 |
73.5 |
| MJPB 10/16 |
10 |
16 |
16 |
73.5 |
| MJPB 16/16 |
16 |
16 |
16 |
73.5 |
| MJPB 16/25 |
16 |
25 |
16 |
73.5 |
| MJPB 25/25 |
25 |
25 |
16 |
73.5 |
|
Material:Al-99.5%
Product property:MJPB is designed to connect the insulated cable(include ABC cable), It is accordance with NFC33-021.The sleeve is without tension.
And its cap can prevent the water into the barrel.It is colored differently to distinguish the cable sizes.
Marked with type,cable size,die size.inner cable length and number of crimping. |

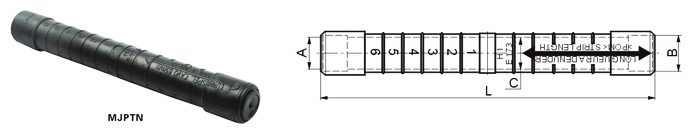

| Pre-insulated sleeve |
 |
| Modle |
Cable Size(mm2) |
Plastic Sleeve Diameter(mm) |
Length(mm) |
| A |
B |
C |
L |
| MJPTN 54.6/54.6 |
54.6 |
54.6 |
20 |
172.5 |
| MJPTN 54.6/70 |
54.6 |
70 |
20 |
172.5 |
| MJPTN 70/70 |
70 |
70 |
20 |
172.5 |
| MJPTN 95/95D |
95 |
95 |
25 |
172.5 |
|
Material:Aluminum alloy
Product property:MJPTN is designed to connect the neutral messenger in aerial bundled cable, It is accordance with NFC33-021.The sleeve is withfull tension.
And its cap can prevent the water into the barrel.It is colored distinguish the cable sizes.
Marked with type,cable size,die size.inner cable length and number of crimping. |

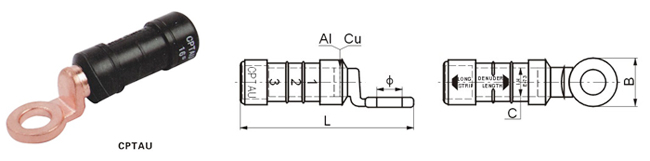

| Pre-insulated bimetallug |
 |
| Modle |
Dimensions(mm) |
Length(mm) |
| C |
B |
Φ |
L |
| CPTAU 16-10 |
16 |
20 |
10.5 |
73 |
| CPTAU 25-12 |
20 |
24 |
13 |
98.5 |
| CPTAU 35-12 |
20 |
24 |
13 |
98.5 |
| CPTAU 50-12 |
20 |
24 |
13 |
98.5 |
| CPTAU 54.6-12 |
20 |
24 |
13 |
98.5 |
| CPTAU 70-12 |
20 |
24 |
13 |
98.5 |
| CPTAU 95-12 |
20 |
24 |
13 |
98.5 |
|
Material:Al-99.6%
Product property:CPTAU is designed to connect the insulated cable(include ABC cable), It is accordance with NFC33-021.The waterproof cap can prevent the water into the water into the barrel.It is colored differently to distinguish the cable sizes.
Marked with type,cable size,die size.inner cable length and number of cirmping. |

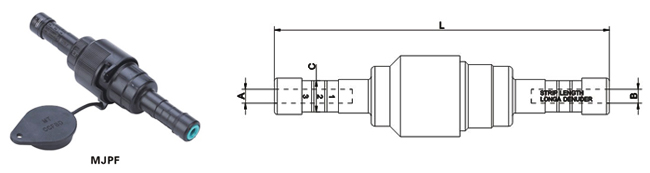

| Pre-insulated sleeve(with fuse) |
 |
| Modle |
Dimensions(mm) |
Length(mm) |
| C |
B |
Φ |
L |
| MJPF 16/16 |
16 |
16 |
16.2 |
174.0 |
| MJPF 16/25 |
16 |
25 |
16.2 |
174.0 |
| MJPF 25/25 |
25 |
25 |
16.2 |
174.0 |
|
Material:Brass(silver plating)Aluminium
Product property:MJPF is designed to connect the neutral messenger is aerial bundled cable. It is in accordance with NFC33-021. The sleeve is with full tension.
And it¨s cap can prevent the water into the barrel. It is colored differently to distinguish the cable sizes.
Marked with type, cable size, inner cable length and number of crimping. |
