 Bolt brass lug WCJC

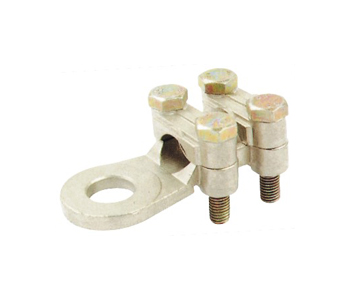

Bolted brass lug
Material: Brass
Suface treatment: Nickle plated
Products property: It is fixed by bolts and used in the connections between the electrical equipment with cable and the indoor distribution equipment. They can be reused many times.
Modle Dimensions(mm)
L D B Φ
WCJC 16-8 37 16 21.5 8
WCJC 25-35-10 48 22 23 11
WCJC 50-70-10 61 23 30 11
WCJC 70-95-12 66.5 27 33 13
WCJC 120-150-14 73 32 36 15
WCJC 185-240-16 91 39 46 17
WCJC 300-20 105 45.5 55 21
WCJC 400-22 122 50 60 23
