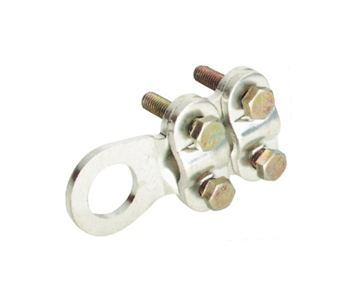

 Bolt copper lug WCJB
Bolted copper lug
Material: E-Cu
Surface treatment: Tin plated
Products property: It is fixed by bolts and used in the connections betweem the electrical equipment with cable and the indoor distribution equipment. It can bereused many times.
Modle Dimensions(mm)
L d B Φ
WCJB 6-10-6 31 15 18.5 6.5
WCJB 16-25-8 46 18.5 24 8.5
WCJB 25-35-10 53 21.5 24 10.5
WCJB 50-70-10 63 23.5 31 10.5
WCJB 70-95-12 69 24 34 13
WCJB 120-150-12 76 30 42 13
WCJB 120-150-16 76 30 42 17
WCJB 185-240-16 85.5 34 48.5 17
WCJB 185-240-20 88.5 36 48.5 21
WCJB 240-300-20 87 34.5 50.5 21
