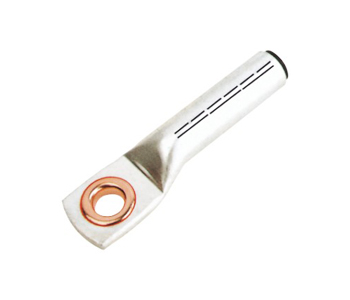

 Bimetal lug ATL
Bimetal lug
Material: E-Cu; A1-99.5%
Surface treatment: Bright
Products property: It is used for screwing non-tension aluminiumconnections using copper wasshers.

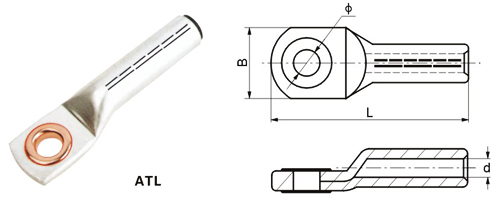

Modle Dimensions(mm)
L d B Φ
ATL 10-6 63 5 18 6.5
ATL 10-8 63 5 22 8.5
ATL 16-8 63 5.8 22 8.5
ATL 16-10 65 5.8 25 10.5
ATL 25-8 71 6.8 22 8.5
ATL 25-10 73 6.8 25 10.5
ATL 25-12 73 6.8 27.5 13
ATL 35-8 79 8 22 8.5
ATL 35-10 80 8 26 10.5
ATL 35-12 82.5 8 30 13
ATL 50-8 84.5 9.8 25 8.5
ATL 50-10 86 9.8 27 10.5
ATL 50-12 87.5 9.8 30 13
ATL 70-8 98.5 11.2 28 8.5
ATL 70-10 100 11.2 29 10.5
ATL 70-12 102.5 11.2 32 13
ATL 95-10 106.5 13.2 32 10.5
ATL 95-12 106.5 13.2 35 13
ATL 95-16 108.5 13.2 38 17
ATL 120-10 107.5 14.7 34 10.5
ATL 120-12 107.5 14.7 35 13
ATL 120-16 109.5 14.7 38 17
ATL 150-10 119 16.3 35 10.5
ATL 150-12 119 16.3 35 13
ATL 150-16 121.5 16.3 41 17
ATL 150-20 123 16.3 44 21
ATL 185-12 123.5 18.3 40 13
ATL 185-16 124.5 18.3 42 17
ATL 185-20 126 18.3 46 21
ATL 240-12 136 21 45 13
ATL 240-16 136 21 45 17
ATL 240-20 136 21 49 21
ATL 300-16 144 23.3 51 17
ATL 300-20 145 23.3 51 21
ATL 400-16 187 26 58 17
ATL 400-20 187 26 58 21
