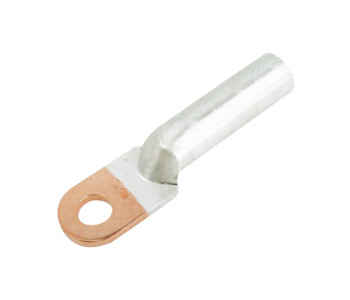

 Bimetal lug DTL
Bimetal lug
Material: E-Cu; A1-99.6%
Surface treatment: Bright
Products property: Due to the coupling effect when Aluminium comes in contact with Copper, corrosion will happen in a short time. Currently the best solution is to use Aluminium-Copper bimetal connectors. A bimetal lug should be used for termination
The friction welding is well done. And its barrel capped is illed with joint compound to avoid oxidization
Modle Dimensions(mm)
L d B Φ
DTL 10-6 62 4.8 13.5 6.5
DTL 16-8 70 5.8 16 8.5
DTL 25-8 75 7.2 17.5 8.5
DTL 35-10 85 8.5 20 10.5
DTL 50-10 90 9.7 23 10.5
DTL 70-12 102 11.5 26 12.5
DTL 95-12 112 13.5 28 12.5
DTL 120-14 120 15 31 14.5
DTL 150-14 125 16.5 35 14.5
DTL 185-16 133 18.5 37.5 17
DTL 240-16 140 21 40 17
DTL 300-18 160 23.5 44.5 18.5
DTL 400-20 170 27 50 21
DTL 500-20 225 29 60 21
