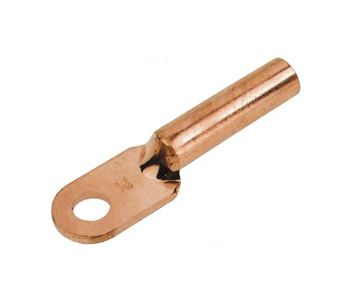

 Cable lug DT
Cable lug
Material:E-Cu
Surface treatment: Bright
Product Property:It is used to connect the copper conductor end.

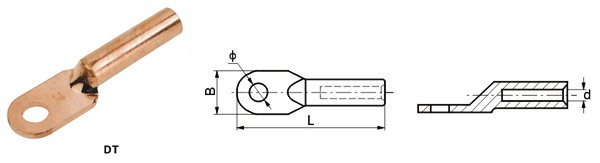

Modle Dimensions(mm)
L d B Φ
DT 10-6 59 4.7 13.5 6.5
DT 16-8 67 5.7 16 8.5
DT 25-8 70 7.2 17.5 8.5
DT 35-10 78 8.5 20 10.5
DT 50-10 87 9.7 23 10.5
DT 70-12 95 11.5 26 12.5
DT 95-12 105 13.5 28 12.5
DT 120-14 112 15 31 14.5
DT 150-14 116 16.5 35 14.5
DT 185-16 125 18.5 37.5 17
DT 240-16 134 21 40 17
DT 300-18 150 23.5 44.5 18.5
DT 400-20 160 26.5 50 21
