 JM(JGB)

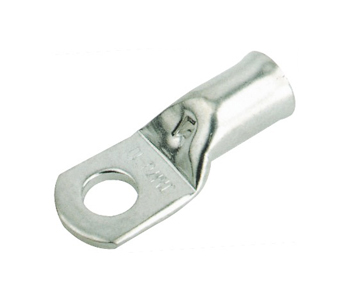

Cable lug
Material:E-Cu
Surfacetreatment:Tin-plated
Product Property: It is used to connect the copper conductor end.It has aviewing window to check the conductor location . And its bell mouth is specially designed to accmmodate fine strand flexible conductors. Because fine stranded cables have a larger diameter than normal calbes. And they tend to splay out after stripping. JGB lugs which funnel the strands into the lugand make conductor insert easily.
Modle Dimensions(mm)
L d Φ
JM(JGB)6-5 25 3.7 5.2
JM(JGB)6-6 25 3.7 6.5
JM(JGB)6-8 25 3.7 8.4
JM(JGB)10-6 26 4.5 6.5
JM(JGB)10-8 26 4.5 8.4
JM(JGB)10-10 28 4.5 10.3
JM(JGB)16-6 28.5 5.7 6.5
JM(JGB)16-8 30.5 5.7 8.4
JM(JGB)16-10 31 5.7 10.5
JM(JGB)25-6 33.5 7.2 6.5
JM(JGB)25-8 35 7.2 8.4
JM(JGB)25-10 35 7.2 10.5
JM(JGB)35-6 37.5 8.5 6.5
JM(JGB)35-8 38 8.5 8.5
JM(JGB)35-10 39 8.5 10.5
JM(JGB)35-12 39 8.5 13
JM(JGB)50-6 43.5 9.8 6.5
JM(JGB)50-8 45 9.8 8.5
JM(JGB)50-10 45 9.8 10.5
JM(JGB)50-12 45 9.8 13
JM(JGB)70-8 50 11.5 8.5
JM(JGB)70-10 51.5 11.5 10.5
JM(JGB)70-12 51.5 11.5 13
JM(JGB)95-10 58.5 13.7 10.5
JM(JGB)95-12 58.5 13.7 13
JM(JGB)120-12 65 15 13
JM(JGB)120-14 65 15 14.7
JM(JGB)120-16 66.5 15 17
JM(JGB)150-10 73 16.7 10.5
JM(JGB)150-12 73 16.7 13
JM(JGB)150-14 73 16.7 14.7
JM(JGB)150-16 73 16.7 17
JM(JGB)185-12 80 19.2 13
JM(JGB)185-14 80 19.2 14.7
JM(JGB)185-16 80 19.2 17
JM(JGB)240-16 92.5 21 17
JM(JGB)240-20 92.5 21 21
JM(JGB)300-16 -- 24 --
JM(JGB)300-20 -- 24 --
JM(JGB)400-16 -- 27 --
JM(JGB)400-20 -- 27 --
JM(JGB)500-16 -- 30 --
JM(JGB)500-20 -- 30 --
JM(JGB)630-20 -- 35 --
JM(JGB)630-22 -- 35 --
JM(JGB)800-22 -- 39 --

JM(JGB)1000-22

 -- 44 --
