 JM(JGY)

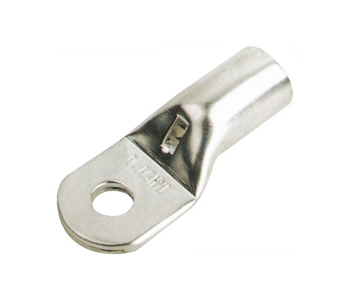

Cable lug
Material:E-Cu
Surface treatment:Tin-plated
Product Property:It is used to connect the copper conductor end
It has viewing window to check the conductor location
Modle Dimensions(mm)
L d Φ
JM(JGY)6-5 25 3.7 5.2
JM(JGY)6-6 25 3.7 6.5
JM(JGY)6-8 25 3.7 8.4
JM(JGY)10-5 26 4.5 5.3
JM(JGY)10-6 26 4.5 6.5
JM(JGY)10-8 26 4.5 8.4
JM(JGY)10-10 28 4.5 10.3
JM(JGY)16-6 28.5 5.7 6.5
JM(JGY)16-8 30.5 5.7 8.5
JM(JGY)16-10 31 5.7 10.5
JM(JGY)25-6 35 7.2 6.5
JM(JGY)25-8 35 7.2 8.4
JM(JGY)25-10 35 7.2 10.5
JM(JGY)35-6 37.5 8.5 6.5
JM(JGY)35-8 38 8.5 8.5
JM(JGY)35-10 39 8.5 10.5
JM(JGY)35-12 39 8.5 13
JM(JGY)50-6 43.5 9.8 6.5
JM(JGY)50-8 45 9.8 8.5
JM(JGY)50-10 45 9.8 10.5
JM(JGY)50-12 45 9.8 13
JM(JGY)50-14 45 9.8 14.5
JM(JGY)70-8 50 11.5 8.5
JM(JGY)70-10 51.5 11.5 10.5
JM(JGY)70-12 51.5 11.5 13
JM(JGY)95-8 58.5 13.7 8.5
JM(JGY)95-10 58.5 13.7 10.5
JM(JGY)95-12 58.5 13.7 13
JM(JGY)95-14 59 13.7 15
JM(JGY)120-10 63.5 15 10.5
JM(JGY)120-12 65 15 13
JM(JGY)120-14 65 15 14.7
JM(JGY)120-16 66.5 15 17
JM(JGY)150-10 73 16.7 10.5
JM(JGY)150-12 73 16.7 13
JM(JGY)150-14 73 16.7 14.7
JM(JGY)150-16 73 16.7 17
JM(JGY)185-10 80 19.2 10.5
JM(JGY)185-12 80 19.2 13
JM(JGY)185-14 80 19.2 14.7
JM(JGY)185-16 80 19.2 17
JM(JGY)240-12 92.5 21 13
JM(JGY)240-14 92.5 21 14.7
JM(JGY)240-16 92.5 21 17
JM(JGY)240-20 94.5 21 21
JM(JGY)300-12 102 24 13
JM(JGY)300-16 102 24 17
JM(JGY)300-20 105 24 21
JM(JGY)400-16 114 27 17
JM(JGY)400-20 116 27 21
JM(JGY)500-16 127 30 17
JM(JGY)500-20 127 30 21
JM(JGY)630-16 140 35 17
JM(JGY)630-20 140 35 21
JM(JGY)630-22 140 35 23
JM(JGY)800-22 170 39 23
JM(JGY)1000-22 200 44 23
