 JM(JGK)

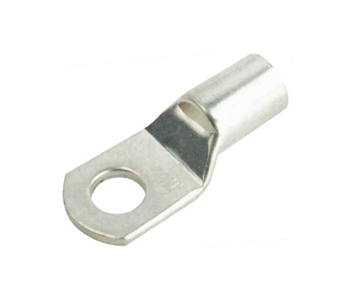

Cable lug
Material:E-Cu
Surface treatment:Tin-plated
Product Property:It is used to connect the copper conductor end.
It has a viewing window to check the conductor location
Modle Dimensions(mm)
L d Φ
JM(JGK)1.5-4 18 1.9 4.2
JM(JGK)1.5-5 18 1.9 5.2
JM(JGK)1.5-6 18 1.9 6.5
JM(JGK)2.5-4 19 2.8 4.3
JM(JGK)2.5-5 20 2.8 5.2
JM(JGK)2.5-6 20 2.6 6.5
JM(JGK)4-4 19.5 3.2 4.3
JM(JGK)4-5 20.5 3.2 5.2
JM(JGK)4-6 22 3.2 6.5
JM(JGK)6-5 22 3.7 5.2
JM(JGK)6-6 23 3.7 6.5
JM(JGK)6-8 24 3.7 8.4
JM(JGK)6-10 24 3.7 10.3
JM(JGK)10-6 24 4.5 6.5
JM(JGK)10-8 25 4.5 8.4
JM(JGK)10-10 26.5 4.5 10.3
JM(JGK)16-6 27.5 5.7 6.5
JM(JGK)16-8 29.5 5.7 8.4
JM(JGK)16-10 30 5.7 10.5
JM(JGK)25-6 32.5 7.2 6.5
JM(JGK)25-8 33 7.2 8.4
JM(JGK)25-10 34 7.2 10.5
JM(JGK)25-12 37 7.2 13
JM(JGK)35-6 36 8.5 6.5
JM(JGK)35-8 37 8.5 8.5
JM(JGK)35-10 38 8.5 10.5
JM(JGK)35-12 38 8.5 13
JM(JGK)50-6 41 9.8 6.5
JM(JGK)50-8 42.5 9.8 8.5
JM(JGK)50-10 44 9.8 10.5
JM(JGK)50-12 44 9.8 13
JM(JGK)50-14 44 9.8 14.7
JM(JGK)70-8 48.5 11.5 8.5
JM(JGK)70-10 50 11.5 10.5
JM(JGK)70-12 50 11.5 13
JM(JGK)95-8 57 13.7 8.5
JM(JGK)95-10 57 13.7 10.5
JM(JGK)95-12 57 13.7 13
JM(JGK)95-14 57 13.7 15
JM(JGK)95-16 57 13.7 17
JM(JGK)120-10 61.5 15 10.5
JM(JGK)120-12 63 15 13
JM(JGK)120-14 63 15 14.7
JM(JGK)120-16 63.5 15 17
JM(JGK)120-20 67.5 15 21
JM(JGK)150-10 71 16.7 10.5
JM(JGK)150-12 71 16.7 13
JM(JGK)150-14 71 16.7 14.7
JM(JGK)150-16 71 16.7 17
JM(JGK)185-10 77 19.2 10.5
JM(JGK)185-12 77 19.2 13
JM(JGK)185-14 77.5 19.2 14.7
JM(JGK)185-16 79 19.2 17
JM(JGK)185-18 79 19.2 18.7
JM(JGK)185-20 79 19.2 21
JM(JGK)240-10 89.5 21 10.5
JM(JGK)240-12 89.5 21 13
JM(JGK)240-14 90 21 14.7
JM(JGK)240-16 91 21 17
JM(JGK)240-20 92 21 21
JM(JGK)300-10 100 24 10.5
JM(JGK)300-12 100 24 13
JM(JGK)300-16 100 24 17
JM(JGK)300-20 102 24 21
JM(JGK)400-12 111 27 13
JM(JGK)400-16 111 27 17
JM(JGK)400-18 113 27 18.5
JM(JGK)400-20 113 27 21
JM(JGK)500-16 123 30 17
JM(JGK)500-20 123 30 21
JM(JGK)630-16 135 35 17
JM(JGK)630-20 135 35 21
JM(JGK)630-22 135 35 23
JM(JGK)630-8/4 135 35 8.5
JM(JGK)630-10/4 135 35 10.5
JM(JGK)800-20 170 39 21
JM(JGK)800-22 170 39 23
JM(JGK)1000-20 200 44 21
JM(JGK)1000-22 200 44 23
