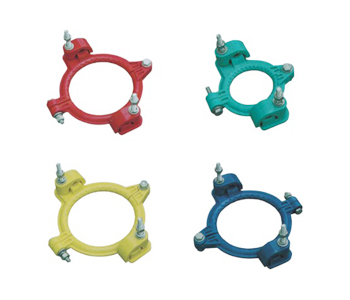

SMG Series conductor fastening clamp

Application

Application to the fastness of 10kV or below overhead line with insulators.

Advantages

1.The clamp is made of high intensity aluminumalloy, light and graceful designed;
2.Easy installation, simple construction;
3.Durable service, abrasion resistance;
4.No magnetization and eddy current loss;
5.Repair and maintenance free,fire resistance; ensure safe and reliable operation of wire.

Technical Data

Type	Applicable Voltage(kV)	Applicable conductor(mm²)	Dimensions(mm)			Note
Type	Applicable Voltage(kV)	Applicable conductor(mm²)	A	B	C	Note
SMGS-P20	¡Ü10kV	25~240mm²	¦µ106	200	180	Shell:Weathering Plastic
SMGS-P15			¦Õ84	160	130
SMGS-PS15			¦µ66	153	120
SMGL-P20	¡Ü10kV	25~240mm²	¦Õ106	178	157	Shell:Aluminum alloy
SMGL-P15			¦µ84	160	135
SMGL-PS15			¦Õ66	146	117
SMGL-PS15N	¡Ü10kV	25~240mm²	¦µ55	146	105	PS15-300
SMGL-PSN	20kV	25~240mm²	¦Õ76	170	150	PSN-170/12.5S

Installation way and effect picture
