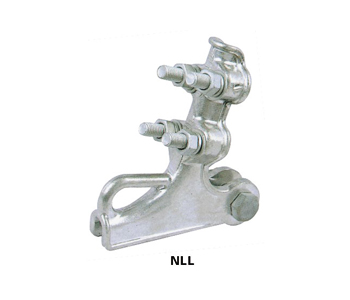

Bolted type strain clamp

Material:High strength aluminium alloy by casting
Product property:NLL is suitable for aerial line up to 35kv,fixing stranded aluminum wire,steel-cored aluminum strand on the strain pole,or aerial insulated aluminum conductor.Smooth surface makes a long services life,Easy installation.No waste of electric energy.

Type	Conductor Diameter(mm)	Specification		U-bolted	Failure Load(KN)
Type	Conductor Diameter(mm)	1KV(mm²)	10KV(mm²)	U-bolted	Failure Load(KN)
NLL-0	5.0-10.0	-	-	2～M12	40
NLL-1	5.0-10.0	25-70	10-25	2～M12	40
NLL-2	10.1-14.0	50-120	25-50	2～M12	40
NLL-3	14.1-18.0	120-240	70-120	2～M14	70
NLL-4	18.1-23.0	185-300	150-240	2～M14	90
