| Insulating covers |

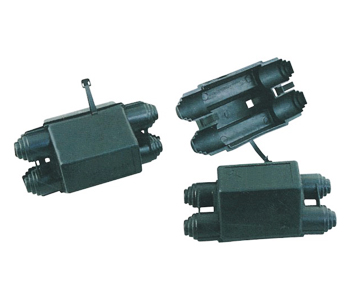

SM1 and SM2,SM3 are used as a connector covers.
The covers are used with Al/Al and Al/Cu connectors as insulation and protection against corrosion caused by various climatic conditions.The cover has to be installed so that the drain hole for ambient water is downwards.
The cover is made of UV-radiation and weather resistant thermoplastic.The insulating covers was suitable for type, it have two size,the small insuating cover was use for conductor size till 120mm2, and the big cover wasuse for conductor size till 240mm2.The SI3 type covers has to be installed with the holes in the clamp body,we have two size for 120mm2(max) and for 240mm2(max). |
| Modle |
Conductor size mm2 (Max) |
Suitable for clamp |
| SM1-1 |
16-150 |
CAPG,APG,ALPG,CUPG,PGS,PGT,SM,JBL,JBTL,JBT |
| SM1-2 |
35-240 |
CAPG,APG,ALPG,CUPG,PGS,PGT,SM,JBL,JBTL,JBT |
| SM2-1 |
16-120 |
CAPG,APG,ALPG,CUPG,PGS,PGT,SM,JBL,JBTL,JBT |
| SM2-2 |
35-240 |
CAPG,APG,ALPG,CUPG,PGS,PGT,SM,JBL,JBTL,JBT |
| SM3-1 |
16-150 |
CAPG,APG,CUPG |
| SM3-2 |
35-200 |
CAPG,APG,CUPG | |
 | |
