 Parallel groove connectors CU/CU
Parallel groove connectors CU/CU

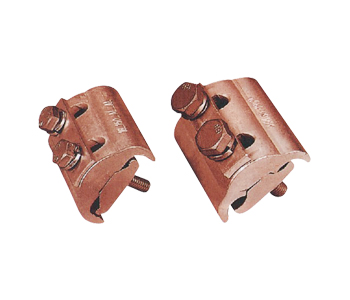

Parallel Groove Clamps Copper Extruded type
The clamp was designed to connect two parallel bare conductors. Conductors can be copper stranded or rods. Material is forged copper for copper to copper connection throughout the conductor range. The clamps have serrated transverse grooves for maximum conductor contact, use copper bolts and utilise Belleville washers to prevent thermal ratcheting under cyclic loads.
The clamps are coated with an oxide inhibitor. And stainless botls and nuts with washers was on requirement.

For tap-off connections of copper-conductors acc.to DIN 48201
Material
Body:Copper alloy
Bolts:steel or stainless steel
Nuts:DIN934,steel
Surface:uncoated

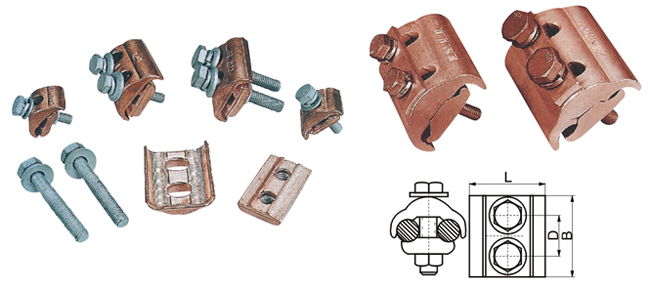

Modle Bolt Torque Conductor Range mm2 Dimensions mm O.D No./Size of Bolts
CU6-70-2 20Nm 6 to 70 2.7 to 10.5 2～M8
CU16-95-2 20Nm 16 to 95 5.1 to 12.5 2～M8
CU16-150-2 30Nm 16 to 150 5.1 to 15.7 2～M10
CU150-240-2 40Nm 150 to 240 15.7 to 20.3 2～M12
CU300-400-3 40Nm 300 to 400 22.6 to 26.7 3～M12
