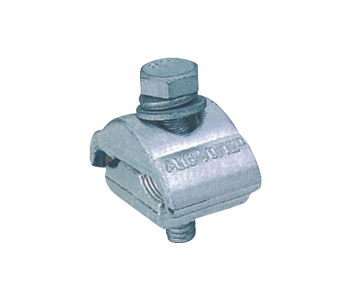

 Aluminium Copper and Bimetallic type
Aluminium Copper and Bimetallic type
Technical Data
Modle Conductor Cross-section(mm2) Bolts
CAPG-A1 Cu 6-50 A1 16-70 1¡ÁM8¡Á40
CAPG-A2 Cu 10-95 A1 25-150 1¡ÁM8¡Á45
CAPG-B1 Cu 6-50 A1 16-70 2¡ÁM8¡Á45
CAPG-B2 Cu 10-95 A1 25-150 2¡ÁM8¡Á50
CAPG-B3 Cu 25-185 A1 35-200 2¡ÁM10¡Á60
CAPG-C1 Cu 6-50 A1 16-70 3¡ÁM8¡Á45
CAPG-C2 Cu 10-95 A1 25-150 3¡ÁM8¡Á50
CAPG-C3 Cu 25-185 A1 35-240 3¡ÁM10¡Á60
CAPG-C4 Cu 35-240 A1 35-300 3¡ÁM10¡Á70
